StraPack Machines

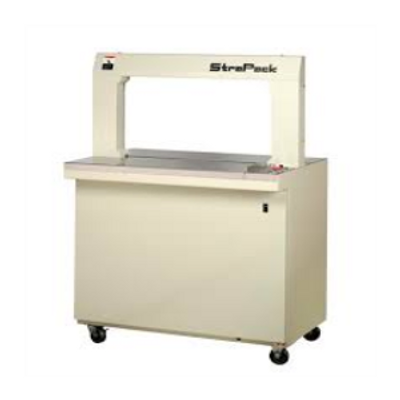

SQ-800IR designed with limited working space.It runs 5mm,6mm or 9mm strapping.Mail flats easily fit into the 650mm(27") wide by 400mm(16") high arch.The angled sides of the SQ-800IR arch support the sides of mail trays during strapping.

• Arch Size                                   : 650 mm(W) * 400 mm(H)
• Machine Dimension Width       : 916 mm
• Height                                        : 1394 mm
• Depth                                         : 609 mm
• Machine Weight                        : 151 kg (933 lbs)
• Minimum Package Size             : 80 mm (W) * 30 mm (H)
• Speed                                         : 1.1 Sec /Strap
• Strap Width                               : 5,6,9,12 mm
• Maximum Strap Tension           : 784 N(80 kgf) or 150 mm stroke

                                                                176 lbf or 6" Stroke For CE spec, 450 N

• Strap                                          : polypropylene
• Coil Size                                    : ID 200 or 230 * W200 mm
• Power Supply                            : Single Phase  0.74 kVA


• Newspaper
• office Application
• Logistics & Distribution
• Agriculture and Farming
• Electronics and Technology
• Automotive Industry

• Compact Footprint
• Internal Coil Storage
• Hands - Free Strapping
• Versatile Strapping Options
• Angled Arch Support
