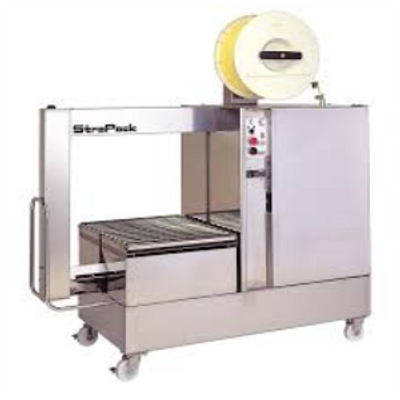

AQ-7M

AQ-7M is the most durable & fully automatic strapping machine. AQ-7M are made of stainless steel or water-resistant material.The bottom of the cabinet is reinforced to provide extra protection. The sealing head is side mounted to protect from moisture and residue. The AQ-7M can strap boxes as small as 80mm or 3 1/8" high. The roller table height is adjustable and can be removed to fit the AQ-7M into an existing conveyor system.

• Arch Size                                 :700 mm(W) * 650 mm(H)
• Machine Dimensions Width   :1580 mm

                                            Height  :1782 mm

                                            Depth   :610 mm

                                Table Height    :624, 642,664 mm

• Machine Weight                      :200kg ( 444 lbs)
• Minimum Package Size           :W 30 * H80 mm
• Strap width                              :5,6,9,12,15 mm
• Maximum Strap Tension         : 1176N (120 kgf) or 62 mm stroke

                                                              264 lbf or 21/2" Stroke

• Speed                                       :1.7 Sec/Strap
• Strap                                        : Polypropylene
• Coil Size                                  :ID 200 or 230 * W200mm
• Power Supply                         :Three phase 0.85kVA

• Poultry Processing
• Meat Processing
• Seafood Processing
• Food Packaging
• Automated Production Lines
• High- Volume Production
• Diverse Packaging Requirements

• Waterproof Part
• Accurate Tensioning
• Fully Hygienic
• Roller Table Height is Adjustable
• Gripper And Tension Arm
