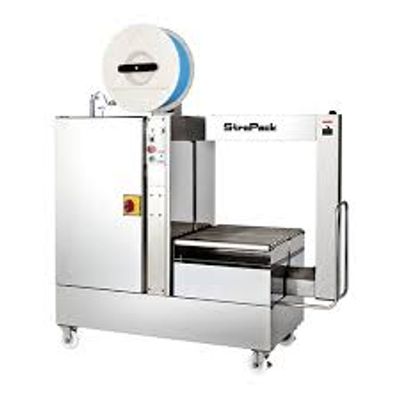

RQ-7000M

RQ-7000M boasts the advanced high-speed sealing head.It has permanently lubricated mechanisms. RQ-7000M have stainless steel construction and side -seal design.it is capable of 50 straps per minute(1.2 seconds per cycle), durability for moisture-laden environments.

• Arch Size                                      :700 mm(W) * 650 mm(H)
• Machine Dimension Width         :1580 mm

                                              Height    :1772 mm

                                              Depth     :614 mm

                                    Table Height    :642 mm

• Machine Weight                          :220 kg
• Minimum Package Size               :W30 * H80 mm
• Strap width                                  :5,6,9,12,(15.5) mm
• Maximum Strap Tension             :690N (70 kgf) or 150 mm stroke

                                                                   155 lbf or 6" Stroke for CE spec, 392 N

• Speed                                           :12 sec/strap
• Strap                                            :Polypropylene
• Coil Size                                      :ID 200 or 230 * W200 mm
• Power Supply                             :Three Phase 0.69 kVA

                                                                 (Single Phase Optional)

• Food and Beverage Industry
• Pharmaceuticals
• Logistics and Warehousing
• Automotive
• Construction Materials
• textile Industry
• Chemicals
• Electronics
• Pharmaceutical Packaging

• Water proof Part
• Accurate Tensioning
• Fully Hygiene
• Roller Table height is Adjustable
• Gripper and Tension Arm
