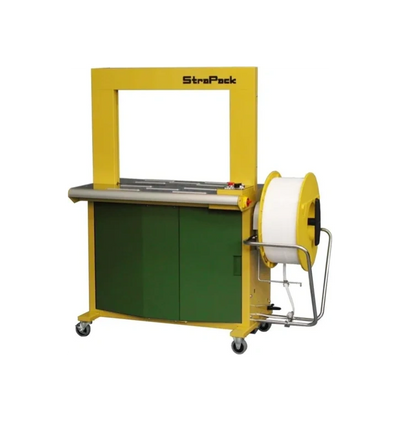

SQ-800

SQ-800 offers a higher strapping speed along with the same outstanding reliability, intuitive operation and impressive ease of maintenance. Available for customizing the SQ-800 to suit your specific requirements. It features more efficient brush-less DC motors, adjustable table height.

• Arch Size                            : 650mm(w) * 500mm(H)
• Dimension Width               : 1254mm
• height                                  : 1404mm
• Depth                                  :  609mm
• Weight                                :  141Kg
• Table Height                       :   795mm-900mm
• Maximum Package Size     : 620mm(W) * 480mm(H)
• Minimum Package Size      : 80mm(W)*30mm(H)
• Strap                                    : Polypropylene
• Strap Width                         : 5,6,9,12,15.5mm
• Maximum Strap Tension     : 784 N (80kgf) or 150mm Stroke For CE spec 450N
• Power Supply                      : Single Phase 0.74kVA (Three Phase Optional)


• logistics and Distribution
• Securing packing and parcels
• Manufacturing industry's
• Bundling products and components
• Corrugated lines
• Strapping cartons and boxes
• Securing shipments to prevent tampering

• Various tension setting
• Self - lubricating Design
• Easy strap loading
• Automatic re-feed
